NIST SP 800-53

Recommended

NIST SP 800-53

Introduction

When it comes to data protection and cybersecurity, frameworks play a critical role, and implementing them can be a significant challenge. One framework that has certainly stood the test of time and has been continuously evolving in today's challenges is NIST SP 800-53. This is a gold standard developed by the NIST (National Institute of Standards and Technology). It provides a comprehensive catalog that covers the much-needed privacy and security controls.

Whether you run a private organization, government agency, or contractor, handling sensitive data with NIST SP 800-53 helps in building a secure foundation for your IT systems. With Revision 5, which was released in 2020, the framework is now more scalable, flexible, and privacy-aware than ever before.

Keep reading as we explore what all this particular framework covers, the possible ways to apply it, and why having it matters the most for your organization.

NIST Risk Management Framework

Before exploring the control catalog, you must first understand the RMF (Risk Management Framework). The NIST RMF (Risk Management Framework) is a structured approach that manages cybersecurity risk across all your organization's information systems. It lets you explore beyond deploying tools, guides you through secure system development, continuous improvement, and valid authorization.

Why RMF Matters

RMF makes security manageable by turning it into a vital part of your repeatable process. It further ensures systems are securely built from scratch and maintained the same way over time.

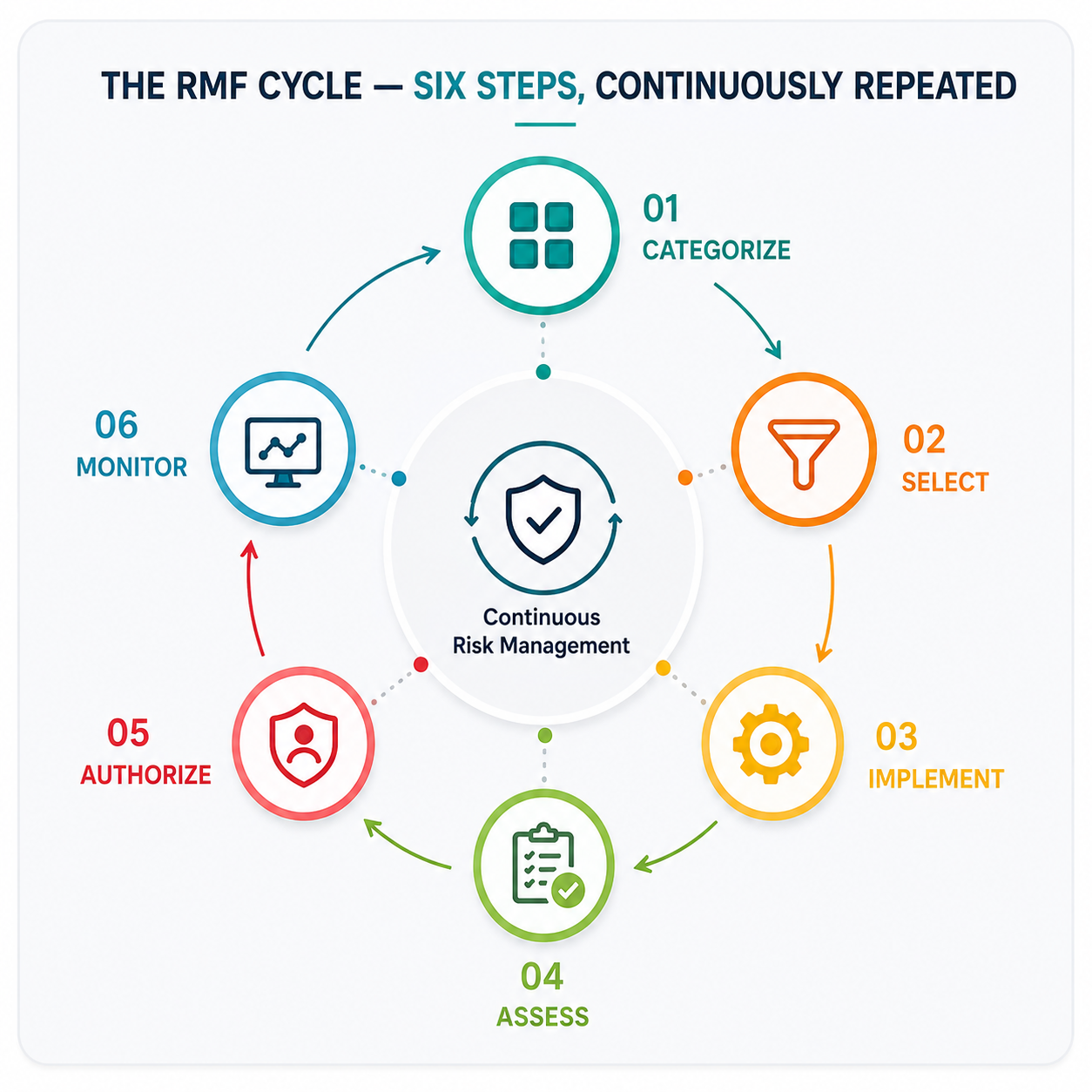

The 6 Key Steps of RMF

This 6-step process will help you plan, apply, and wisely manage controls across your system life cycle. Here is how it works:

  • 1.Categorize : Identify the purpose of your system and the kind of sensitive data it handles, based on FIP 199.
  • 2.Select : Choose appropriate controls from the NIST SP 800-53, given the risk levels.
  • 3.Implement : Analyse and apply the selected controls in your IT environment.
  • 4.Assess : Evaluate the effectiveness of the applied controls and ensure they operate as intended.
  • 5.Authorize : Decision-makers must review the derived system and either accept or reject its profile.
  • 6.Monitor : Continuously monitor the system behavior, control performance, and potential threats.

The RMF can be applied to cloud platforms, hybrid environments, and more, making it a flexible option for today's tech landscape.

Organizational Scope and Objective

The NIST SP 800-53 was originally developed by the U.S. federal agencies to effectively support compliance with the FISMA (Federal Information Security Modernization Act). Its overall value has certainly grown beyond its introduction to FISMA.

Today, any organization, private or public, in need of managing cybersecurity and privacy risks can highly benefit by adopting this standard.

What NIST SP 900-53 Aims to Do:

At its core, the framework has been designed in a way to:

  • Rightly protect the integrity, confidentiality, and availability of all your information-based systems.
  • Offer a standardized approach that helps in finding, implementing, and monitoring both security and privacy controls.
  • Help organizations reduce potential risk exposure through consistent practices.
  • Support compliance with regulatory requirements, both international and U.S.-based ones.

A Broader, More Adaptive Security Framework

The NIST SP 800-53 framework has evolved into a more flexible, inclusive, and comprehensive standard for managing security and privacy across today’s complex digital environments.

  • Supports modern technologies including cloud, mobile, and IoT systems.
  • Integrates dedicated privacy control families to address global regulations such as GDPR and CCPA.
  • Encourages organization-wide adoption beyond federal systems.
  • Aligns seamlessly with both operational processes and technical safeguards.

Why Should You Use It?

Whether you're managing regulated data, working with government clients, or simply aiming to strengthen your cybersecurity posture, adopting NIST SP 800-53 offers a structured, proven approach to risk management.

It’s especially beneficial for organizations that:

  • Operate critical infrastructure or cloud-based platforms.
  • Store sensitive customer or employee data.
  • Want to proactively meet privacy and compliance obligations.
  • Are building secure systems from the ground up.

With a balanced focus on both security and privacy, this framework helps lay the foundation for long-term resilience in a constantly evolving threat landscape.

Control Selection - Baselines - Easy, Medium, Hard, and Tailoring

Working with the right security controls is a crucial step to applying NIST SP 800-53 effectively. The framework makes this process manageable through its predefined security baselines.

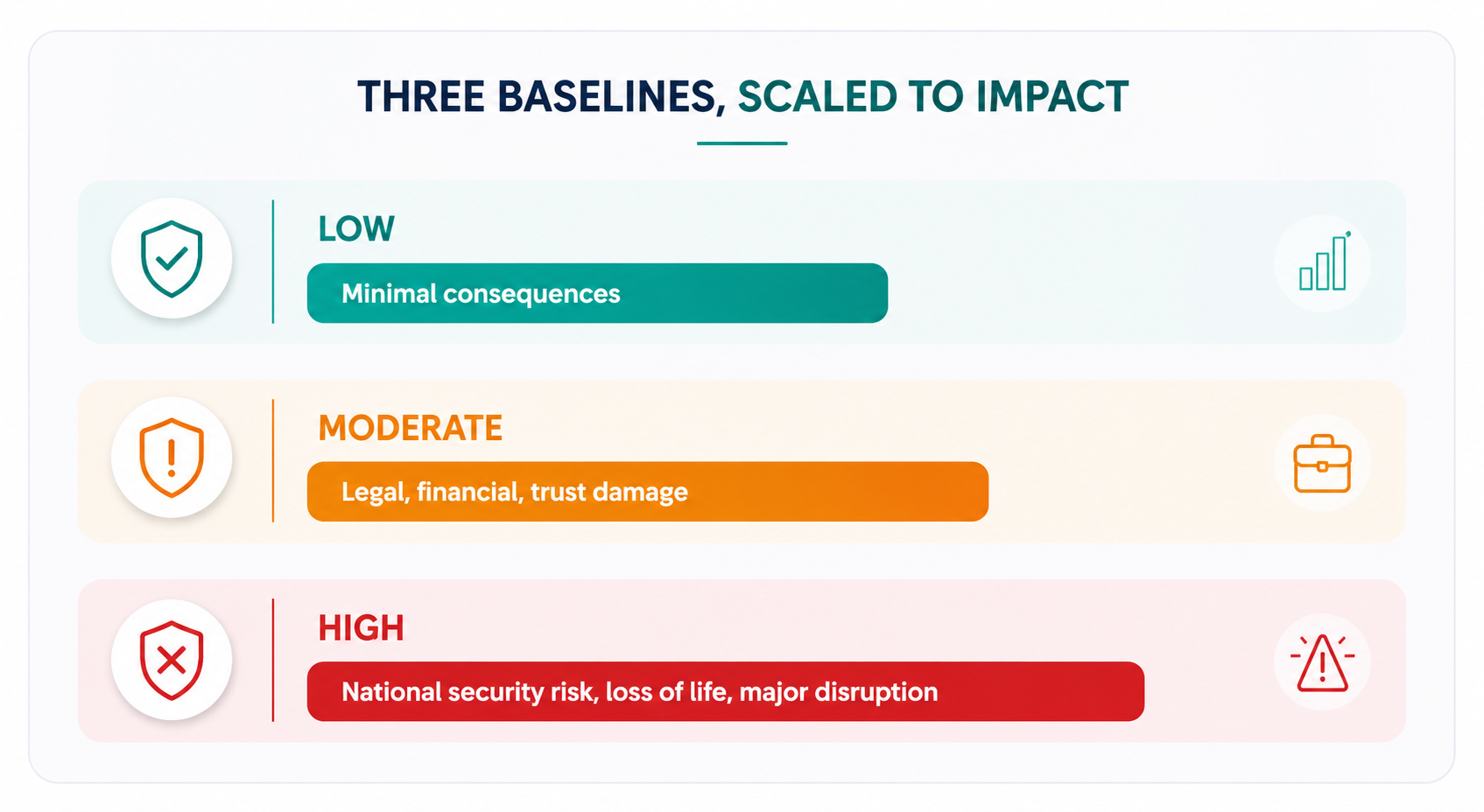

Understanding the Baselines

NIST incorporates three noteworthy baselines, namely, Low, Moderate, and High. These baselines are followed based on the impact of a security failure or data breach.

  • Low Baseline : This is for systems that have minimal, non-compromisable consequences, given no reputational harm, serious financial loss, or personal data exposure.
  • Moderate Baseline : This is for systems where a potential breach can cause noticeable harm, like legal issues, financial impact, or public trust damage.
  • High Baseline : This is for critical systems that are utilized in sectors like finance, defense, or healthcare, where a possible breach can lead to severe consequences like national security risks, loss of life, or massive disruptions.

Tailoring for Your Environment

Not every organization can rightly fit into any one of these baselines. This is why NIST encourages tailoring that involves the process of:

  • Adding enhancements wherever needed.
  • Removing controls that do not apply.
  • Substituting with alternatives, in case of suitability.

Tailoring lets you customize the framework that can suit your specific mission, risk profile, and resources.

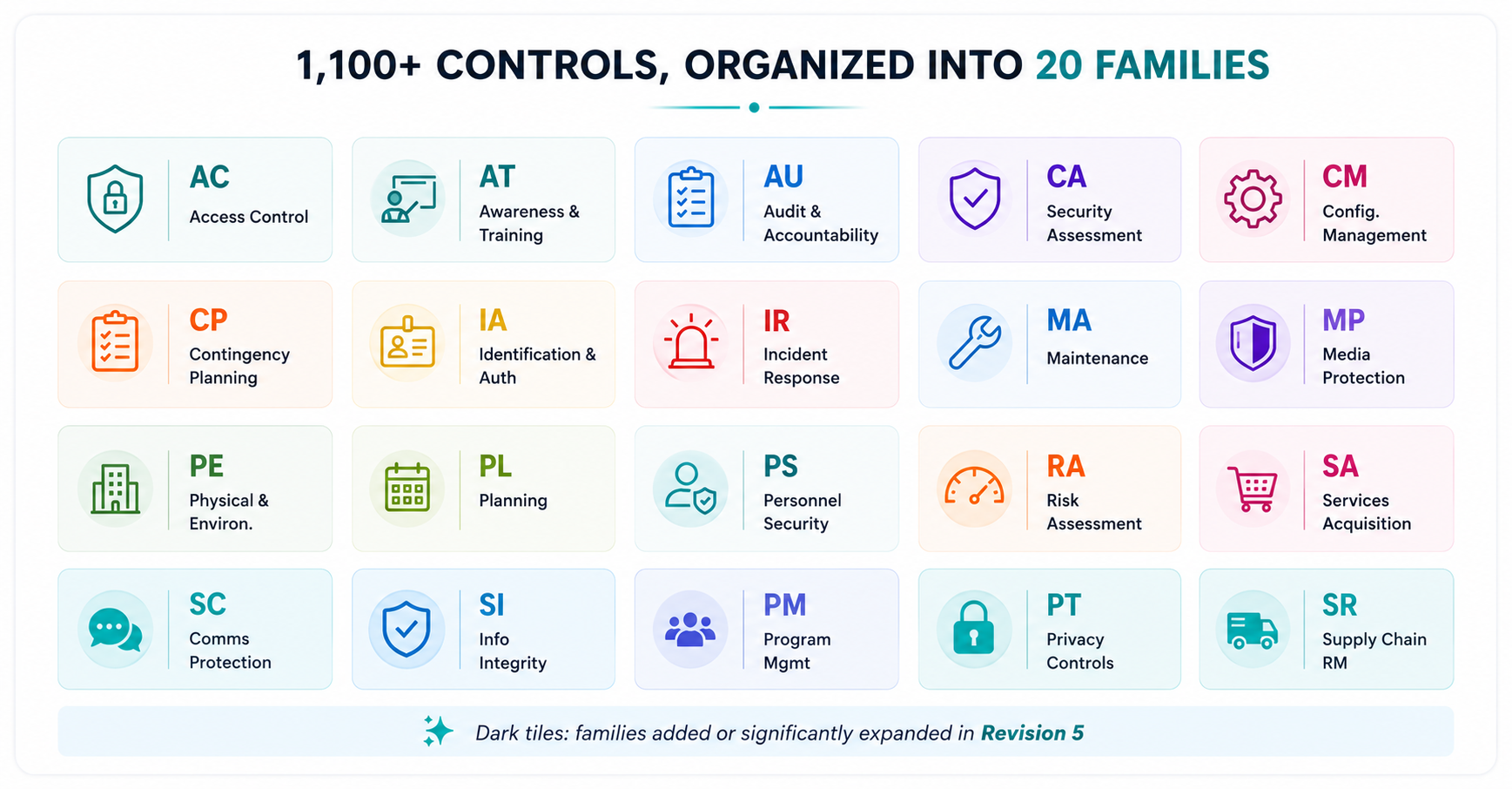

Overview of the 20 Control Families

NIST SP 800-53 organizes more than 1,100 controls that are incorporated into 20 families. Each family focuses on a different aspect of privacy or security.

All these families group related controls into logical categories to make it easier for organizations to understand, implement, and manage privacy and security protections.

Each family focuses on a specific aspect of privacy or cybersecurity, which ranges from risk management to access control to physical security. Let's explore them one after another.

Access Control (AC)

This defines who has access to your data, systems, and apps, and what they are allowed to do with it.

  • RBAC (Role-based access controls)
  • Least-privilege principle
  • MFA (Multi-factor authentication)

Awareness and Training (AT)

People must be your first line of defense against potential cyberattacks or privacy attacks. This family ensures the employees can better understand the cyber risks.

  • Phishing simulations
  • Cybersecurity awareness training
  • Job-role specific training

Audit and Accountability (AU)

Cybersecurity is not about what happened; it's about being able to prove it.

  • Logging user activity.
  • Auditing access and system use
  • Retaining logs securely

Security Assessment and Authorization (CA)

Ensure your system is properly tested and approved before going live.

  • Third-party audits
  • Control assessments
  • ATO (Authority to Operate) process

Configuration Management (CM)

Uncontrolled system changes can be risky. This family certainly helps in managing and tracking changes.

  • Patch management
  • Secure baseline configurations
  • Change approval processes

Contingency Planning (CP)

Whenever your system goes down, this family is well-prepared to handle such incidents and other worst-case scenarios.

  • Business continuity plans (BCP)
  • Backup and recovery planning
  • Testing and rehearsals

Identification and Authentication (IA)

Better understand who is trying to access your system, and verify that they have the necessary rights.

  • Biometric and smart card authentication
  • Strong password choices
  • Identity proofing

Incident Response (IR)

This family helps in detecting, reporting, and recovering from potential cyber incidents.

  • Communication protocols
  • Incident playbooks
  • Forensic investigation steps

Maintenance (MA)

Ensures your system remains in a stable state with secured, documented, and authorized maintenance.

  • Restricting remote maintenance
  • Scheduling routine updates
  • Logging maintenance activities

Media Protection (MP)

This family helps govern the way you protect the data as stored on physical media like drives and USBs.

  • Secure media transport
  • Data encryption on media
  • Sanitization or destruction before disposal

Physical and Environmental Protection (PE)

Other than hackers bringing in potential cyberattacks, unauthorized physical access can be risky.

  • Surveillance systems
  • Controlled facility access
  • Environmental protections

Planning (PL)

Every good security program must start with an effective protection plan.

  • Security architecture documentation
  • System security plans (SSP)
  • Regular updates and reviews

Personnel Security (PS)

People who have access to your systems must be trustworthy.

  • Access revocation upon termination
  • Background checks
  • Insider threat prevention

Risk Assessment (RA)

Before you start mitigating risks, you must understand their potential.

  • Identifying threats and vulnerabilities
  • Conducting risk analyses
  • Risk acceptance and prioritization

System and Services Acquisition (SA)

Ensure the vendors and products you deal with have met your security expectations.

  • Supply chain assessments
  • Secure procurement contracts
  • Third-party software testing

System and Communications Protection (SC)

This family makes sure the data remains safe whether in motion or at rest.

  • Boundary defenses
  • Network encryption
  • Session handling and protections

System and Information Integrity (SI)

Ensure to protect your systems from potential tampering and catch such related issues as early as possible.

  • Real-time monitoring
  • Anti-malware and antivirus tools
  • Integrity checks and alerts

Program Management (PM)

This family places a strong emphasis on organization-wide governance and helps in setting up structure and leadership for security.

  • Budget and resource planning
  • Appointing a CISO or equivalent
  • Performance tracking

Privacy Controls (PT)

As included in Revision 5, this particular family helps protect individual privacy and governs personal data handling.

  • Transparency and user rights
  • Consent and data minimization
  • Privacy impact assessments

Supply Chain Risk Management (SR)

Partners and vendors can introduce potential risks to your stored data. This family helps in proactively managing them.

  • Contractual obligations for security
  • Supplier evaluations
  • Monitoring supply chain integrity

Together, all these control families help form a solid foundation for any security program. It allows you to tailor protections, given your systems, needs, and risk tolerance. They are not just used for compliance; they are practical building blocks for real-world resilience.

Implementation and Assessment

Once you have selected and tailored the controls from NIST SP 800-53, the next step is to implement them. Evaluating the security controls is crucial, and they must be actively enforced and regularly reviewed.

Turning Plans into Practice

Start by mapping the controls with a responsible team. Implement the control using procedures, policies, and technical tools.

  • Create user access policies and role definitions.
  • Deploy firewalls, encryption, and antivirus software.
  • Set up automated alerts for logging.

Ensure that you train your staff so that everyone can understand their role in terms of protecting data and systems.

Assessing Effectiveness

Once all the controls are in place, use NIST SP 800-53A to assess their effectiveness. Assessments can include:

  • Reviewing system configurations
  • Interviews with staff
  • Running vulnerability scans

The main goal is to verify whether the controls have been working as intended, and to document possible weaknesses. You can rightly do this internally by setting up a team or by incorporating a third-party accessor for the same purpose.

Well-documented assessment maintenance helps in building trust with your regulations and leadership, and further showcases that your security program is more than a mere compliance measure.

Authorization and Continuous Monitoring

Rightly implementing and timely assessing the controls must be given priority. Once your system is ready, it must be formally authorized for use, and then continuously monitored to ensure it stays secure over time.

What is ATO (Authorization to Operate)?

Authorization is a formal decision that is ordered by a senior official, most often by a CISO (Chief Information Security Officer). It means that they have reviewed your system's overall security posture and have decided that the residual risk is acceptable.

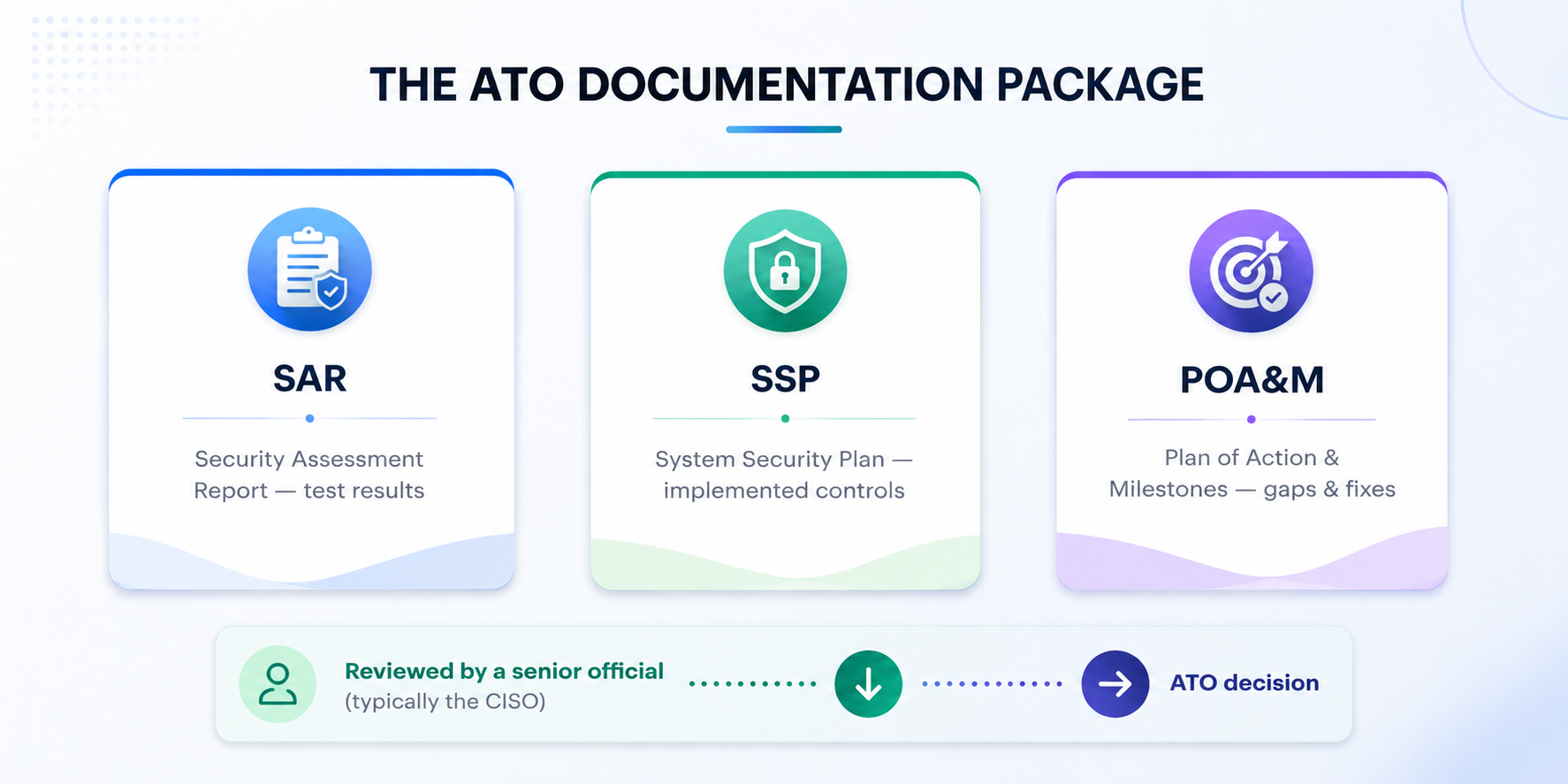

To get an Authority to Operate (ATO), you must provide:

  • An SAR (Security Assessment Report) that holds onto various test-case results
  • An SSP (System Security Plan) that details the implementation controls
  • A POA & M (Plan of Action and Milestones) elaborating gaps and the possible ways you can follow to fix or avoid them

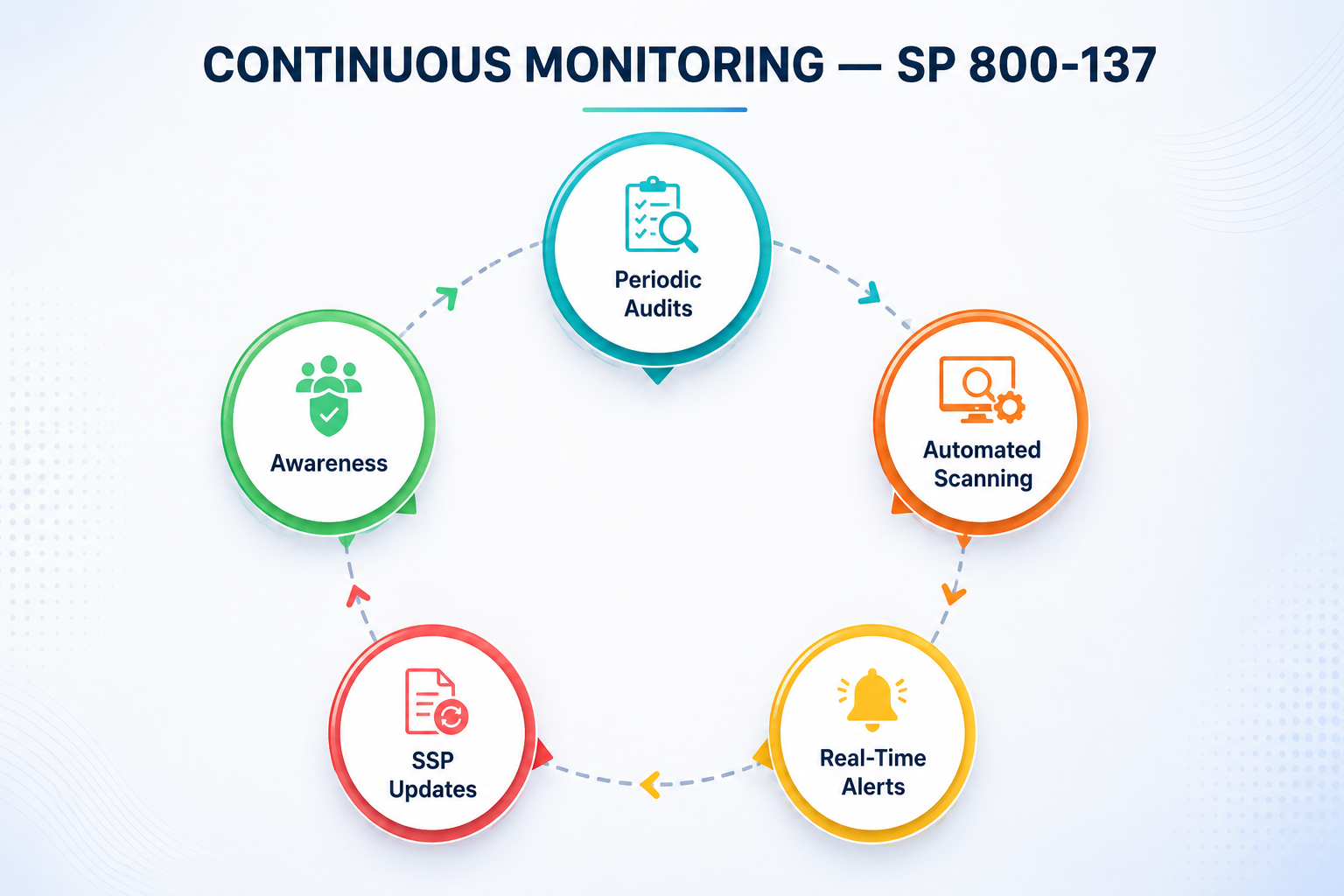

Importance of Continuous Monitoring

Once authorized, your job is not over. Systems do evolve, potential threats can change, and vulnerabilities can happen at any time. This is why continuous monitoring remains an essential process.

Monitoring includes:

  • Periodic audits to reassess control effectiveness
  • Automated tools that can scan for potential vulnerabilities and suspicious activities
  • Real-time alerts for security incidents
  • Timely updating of the SSP, and with other documentation

NIST provides guides for this in SP 800-137, and it focuses on adapting your security posture over time and maintaining situational awareness.

Conclusion

NIST SP 800-53 might look like a difficult task to understand on paper, but its practical value is certainly massive. It helps your organization to build a strong cybersecurity foundation, manage evolving risks, stay compliant with global and national data protection laws, and protect sensitive data from system failures or cybercriminals.

If you are building or managing any system that holds onto sensitive or private data, then you owe it to your users, team members, and business to apply this framework. NIST SP 800-53 is more than a compliance checklist; it is a smart and adaptable toolkit that secures your organization from any threat landscape.
